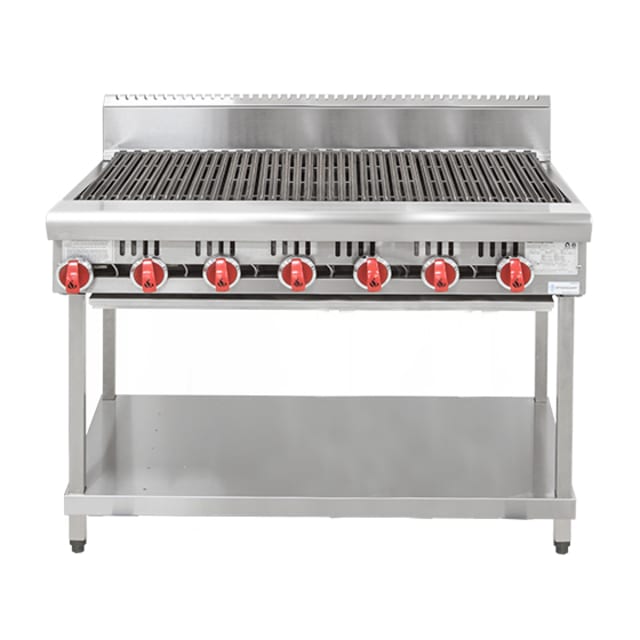

American Range Char Grill AARRB.48.N



The Char Grill Series is designed for heavy duty use and performance in commercial kitchens, with heavy duty radiants for optimal heat distribution to cast iron grates.



FEATURES & BENEFITS:

  • Heavy duty radiants for optimum heat distribution to cast iron grates
  • Radiants are individually removable for easy cleaning
  • Heavy duty cast top grates are angled to control flare-up. Reversible for flexibility of cooking different proteins.
  • 14 gauge all welded heavy duty reinforced firebox
  • Stainless steel polished front and trim for easy cleaning, with fully insulated double layered steel chassis
  • Individually controlled stainless steel burners placed every 140mm, providing maximum output, flexibility and low maintenance
  • Removable full width drip pan under char grill
  • Char Grill burner - Manually lit with pilot.
  • Simple - low maintenance
OPTIONAL EXTRAS:
•102mm adjustable legs
•Equipment stand
•Castor kits



TECHNICAL DATA

Dimensions (W x D x H): 1219 x 828 x 437 (1137)*
Total Weight: 165 Kg
Char Grill: 1219mm wide 128MJ/Hr
  Char Grill



GAS DETAILS Natural Gas (NG)
Minimum Supply Pressure 1.13 kPa
Operating Pressure 1.0 kPa
Total Gas Supply 128MJ/Hr
  3/4” BSP connection
NOTE: It is the responsibility of the installing gas plumber to ensure correct supply and connection sustaining appropriate pressure when all appliances are full on.

Silver Chef Leasing
Rent from $222.85 inc GST per week for 12 months
Select Sliverchef at checkout, pay nothing now.
Up to $65,000 Instant Approval.
Learn More

QTY:

Delivery in 10 business days.

Free Shipping

11111We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Free Returns

Learn More.

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Covid-19 Shipping Delay Notice

As of May 9, 2021, the United States had 32.7 million confirmed cases of COVID-19 (20.7% of confirmed cases worldwide) and 580,000 deaths (17.7% of deaths worldwide). Early on in the pandemic, widespread social, financial, and mental insecurities led to extreme and irrational coping behaviors, such as panic buying. However, despite the consistent spread of COVID-19 transmission, the public began to violate public safety measures as the pandemic got worse

 10 customers are viewing this product
DETAILS

American Range Char Grill AARRB.48.N



The Char Grill Series is designed for heavy duty use and performance in commercial kitchens, with heavy duty radiants for optimal heat distribution to cast iron grates.



FEATURES & BENEFITS:

  • Heavy duty radiants for optimum heat distribution to cast iron grates
  • Radiants are individually removable for easy cleaning
  • Heavy duty cast top grates are angled to control flare-up. Reversible for flexibility of cooking different proteins.
  • 14 gauge all welded heavy duty reinforced firebox
  • Stainless steel polished front and trim for easy cleaning, with fully insulated double layered steel chassis
  • Individually controlled stainless steel burners placed every 140mm, providing maximum output, flexibility and low maintenance
  • Removable full width drip pan under char grill
  • Char Grill burner - Manually lit with pilot.
  • Simple - low maintenance
OPTIONAL EXTRAS:
•102mm adjustable legs
•Equipment stand
•Castor kits



TECHNICAL DATA

Dimensions (W x D x H): 1219 x 828 x 437 (1137)*
Total Weight: 165 Kg
Char Grill: 1219mm wide 128MJ/Hr
  Char Grill



GAS DETAILS Natural Gas (NG)
Minimum Supply Pressure 1.13 kPa
Operating Pressure 1.0 kPa
Total Gas Supply 128MJ/Hr
  3/4” BSP connection
NOTE: It is the responsibility of the installing gas plumber to ensure correct supply and connection sustaining appropriate pressure when all appliances are full on.
Read More
SPECIFICATION

Width: 1219

Height: 437

Depth: 828

Weight: 165
