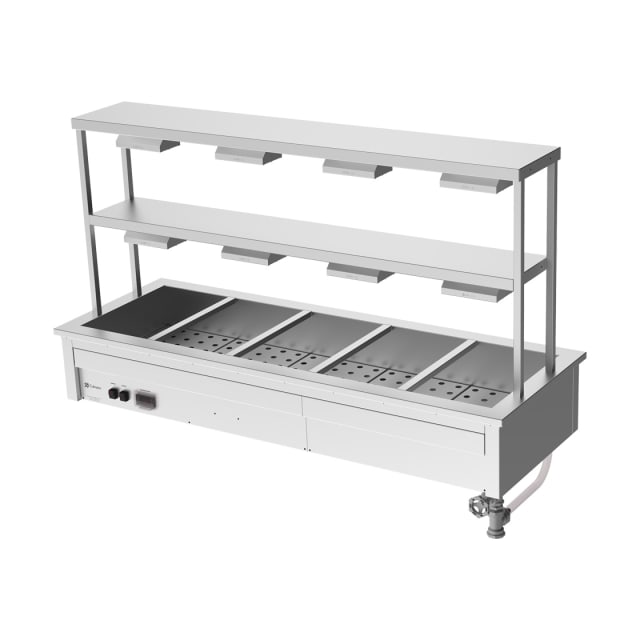

Culinaire Drop In Bain Marie with Double Gantry & Heat Lamps to Bottom & Top Shelves CH.BM.D.GDD.5

The Culinaire® Drop-In Bain Marie is designed to hold pre-heated food at the optimum temperature in Gastronorm pans up to 150mm deep.

 Wet or dry operation (temperature varies greatly when run dry, should not be left unattended for long periods of time).

The Bain Marie comes ready for connection to hot water and waste with all valves supplied and fitted.

The bain marie is fitted with a double gantry with infra-red heat lamps to top and bottom shelves (Refer to CH.GDD for details). Options: Radius well. Contact your Stoddart representative.



FEATURES & BENEFITS:

  • Unit designed to be installed into a new or existing bench top cut-out.
  • Complete with, 2-Tier 304 stainless steel gantry. (Gantry welded to bench top)
  • Wet or dry operation (temperature varies greatly when run dry, should not be left unattended for long periods of time)
  • Temperature regulation via digital control, designed to hold product between 65°C - 90°C.
  • Independent controls for baine marie, hot cupboard and gantry
  • 2-Tier overhead gantry fitted with Quartz IR heat lamps on the underside of the bottom shelf
  • Air insulated, double skinned tank for energy efficient heating
  • Robust 304 grade stainless steel construction
  • Manual fill and manual empty, valve operated waste
  • 1/1 GN sized well, fits pans up to 150mm deep (sold separately).
  • Supplied with pan dividers
  • 12-month parts and labour warranty



TECHNICAL DATA:

Model CH.BM.D.GDD.5
W x D x H (mm) 1817 x 647 x 1035
Cutout Dimensions (mm) 1798 x 625
Total Connected Load 6.15kW
Electrical Connection



3Ø+N+E 400VAC / 50Hz
(Onsite connection)
Water Connection G 1/2” BSP
Waste Connection 1 1/4” BSP



OPTIONAL EXTRAS
Radius Well
Add R to code after the D CH.BM.DR.GDD.5
Note: Radius Well must be nominated at time of order



ACCESSORIES
Large Pan Dividers (To suit large GN pans) CA.PXL
Cross Pan Dividers (To suit smaller GN pans) CA.PXS
