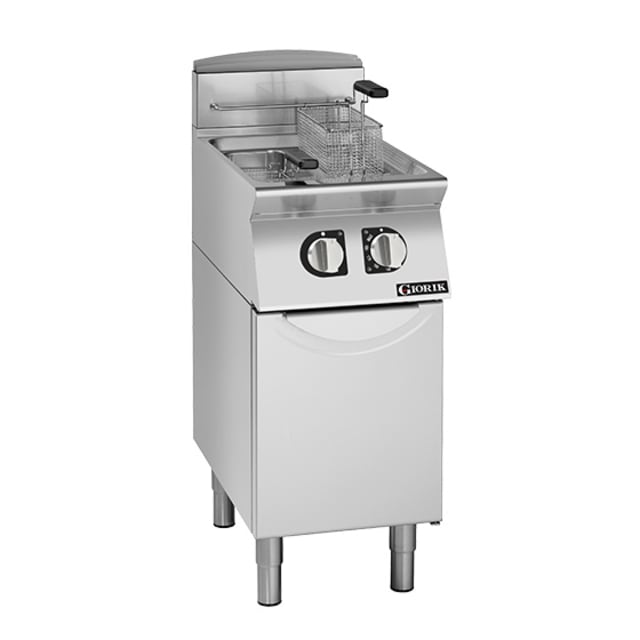

Giorik 700 Series 400mm Tube Gas Split Pan 8L + 8L Fryer FG7207TT.N
- Regular price
- $10,483.00 inc GST
- Regular price
-
$10,483.00 inc GST - Sale price
- $10,483.00 inc GST
- Unit price
- per
Giorik 700 Series 400mm Tube Gas Split Pan 8L + 8L Fryer FG7207TT.N
Offering a diverse range of gas fryers, the Giorik 700 Series has been continuously designed and engineered through research and development to provide the food service industry with top of the range features.
Constructed from robust 304 grade stainless steel with pressed work surfaces and raised edges to protect internals from impact and overflows.
Giorik Freestanding Gas Fryers all feature an advanced cold zone located at the bottom of the tank, collecting residues while preventing tainting of oil.
Split pan gas fryers feature electronic ignition, high efficiency, nickel-plated cast iron burners with immersed heat exchangers inside the tank.
Each fryer is supplied with removable element protector grid, baskets to suit, lid and oil capture drawer.
FEATURES & BENEFITS:
- Class leading, European style, professional quality and reliability since 1963
- 700 series, gas 2 x 8 litre, split pan fryer (43.2 MJ/h)
- Split pan design with immersed tube heat exchangers
- Electronic ignition, high efficiency, nickel plated cast iron burners complete with flame failure device, pilot burner and Hi-limit temperature protection with manual reset
- Temperature regulation via thermostat (100°C – 195°C)
- Thermostat bulbs protected against accidental impact
- Cold zone on the bottom of the tank to collect residues and prevent tainting of oil
- 2x 140x345mm single tanks with oil drainage via ball valve into integrated oil capture drawer
- Indicator lights to monitor the correct operation of the appliance
- Robust 304 grade stainless steel construction with rounded corners for improved cleaning
- Pressed top work surface with raised edges to protect from overflow
- Enclosed base with front access door
- Height adjustable stainless steel feet for a 900mm working height
- Supplied with removable mesh basket support, 2x 130x310x120mm twin baskets and lid
- 24-month warranty
TECHNICAL DATA
| Model | FG7207TT.N |
| W x D x H (mm) | 400 x 720 x 1054 |
| Weight | 73kg |
| Oil Capacity | 2 x 8L |
| Packed Dimensions (mm) | 450 x 825 x 1200 |
| Packed Weight | 78kg |
| Electrical Connection | 1Ø + N + E |
| 240VAC / 50Hz / 0.2kW | |
| 10A plug & lead fitted |
| GAS DETAILS | Natural |
| Gas Connection | 1/2'' BSP |
| Minimum Normal Test Supply Gas Pressure | 1.3 kPa |
| Maximum Normal Test Supply Gas Pressure | 3.5 kPa |
| Nominal Test Point Pressure | 1.0 kPa |
| Total Nominal Gas Consumption | 43.2 MJ/h |
| Note: It is the responsibility of the installing gas plumber to ensure correct supply and connection sustaining appropriate pressure, when all installed gas appliances are operating at maximum |
