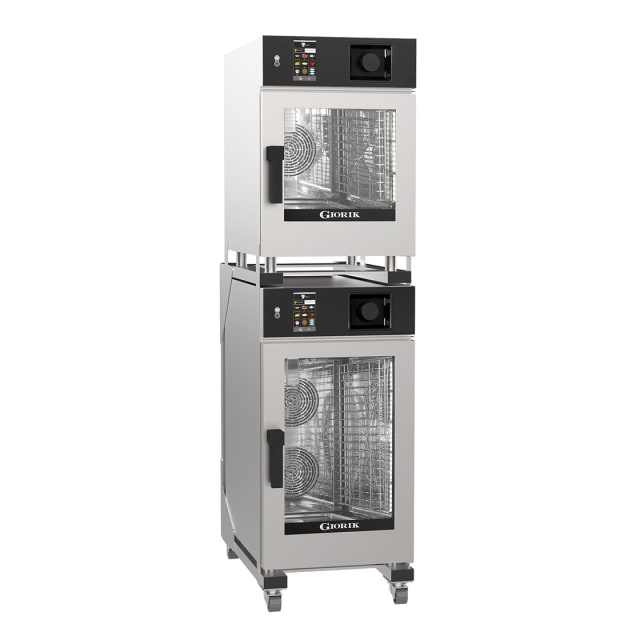

Giorik Mini Touch Stacked Combi Oven Kit KMEST.23.0606.SF
- Regular price
- $32,890.00 inc GST
- Regular price
-
$32,890.00 inc GST - Sale price
- $32,890.00 inc GST
- Unit price
- per
Giorik Mini Touch Stacked Combi Oven Kit KMEST.23.0606.SF
The Giorik Mini Touch Stacked Combi Oven Kits allow for major cooking flexibility, whilst maintaining a compact configuration! Choose a combination of two 6 x 1/1GN ovens, two 6 x 2/3GN ovens, or a 6 on 10 x 1/1GN oven with a Reverse Osmosis or Standard water filter system.
FEATURES & BENEFITS:
- Compact unit at only 519mm wide (30% less space required than traditional ovens)
- Highly efficient instant steam injection oven
- Controlled humidity in the cooking chamber
- Innovative touch screen interface
- One Touch function for easy, icon controlled cooking
- Over 120 pre-set cooking programs, 1,000+ additional programs - 9 phase memory
- Automatic, adaptive cooking, rack control, regeneration, sous vide and smoking programs
- Easy Service function and Recipe tuner as standard
- 3-speed inverter controlled fan for increased precision, control and reliability
- LED lighting for superior cavity illumination
- USB connection and core probe
- Oven cleaning system with liquid, via integrated dispenser
- Left hand hinge door option available
- All Mini Touch ovens are supplied with either the Standard or Reverse Osmosis
- Filtration system
- 24-month warranty (Terms and conditions apply)
TECHNICAL DATA
| Standard Filter | KMEST.23.0606.SF |
| Reverse Osmosis | KMEST.23.0606.RO |
| W x D x H (mm) | 620 x 690 x 1816* |
| *Dimensions do not include water filtration system |
| Weight | 165kg |
| Total Connected Load | 9.4kW |
| Cold Water Connection | 3/4 BSP |
| 300-350 kpa | |
| Min 10°C - Max 35°C |
| Water Quality Requirements | Hardness | 60-100ppm |
| TDS | <100mg/L | |
| CI Chloride | <32mg/L |
| SPECIFICATION OVENS |
| Model | KM0623WT (Top Oven) | KM0623WT (Bottom Oven) |
| Capacity | 6 x 2/3 GN Pans | 6 x 2/3 GN Pans |
| Total Connected Load | 4.7kW / 15A Circuit* | 4.7kW / 15A Circuit* |
| Electrical Connection | 3Ø+N+E 415VAC / 50Hz | 3Ø+N+ E 415VAC / 50Hz |
| L1=10.4A / L2=0A / L3=9.2A | L1=10.4A / L2=0A / L3=9.2A | |
| - Convertable to | 1Ø+N+E 240VAC / 50Hz | 1Ø+N+E 240VAC / 50Hz |
| *Circuit required to be determined at installation by a qualified electrician. |
| Heat Source: 500mm clearance from an external heat source is required in order to protect the oven control components. For clearances under 500mm, it is mandatory for Stoddart heat shields to be fitted while still maintaining a minimum clearance of 50mm to allow access to the unit. Failure to adhere to minimum clearances may void the oven warranty or add service costs due to lack of access. |
| Non-Heat Source: 50mm clearance from a non-heat source to allow access to the unit. |
