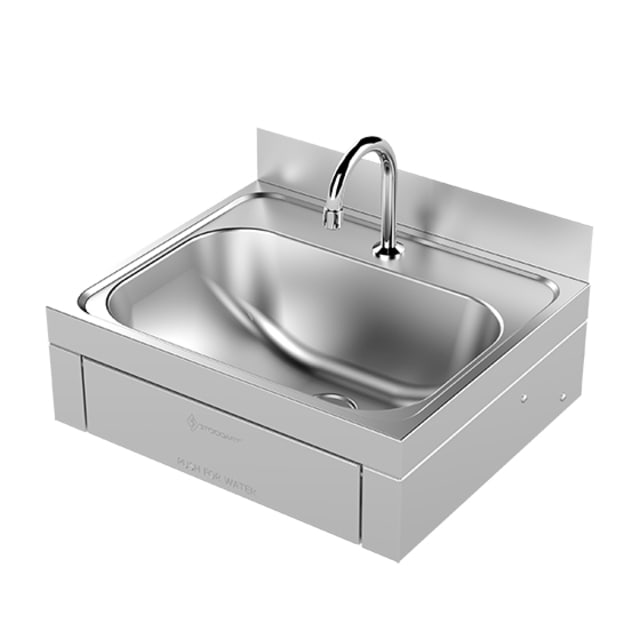

Stoddart Plumbing Knee Operated Wash Basin WB.KO1.300.TMVE
Stoddart Plumbing Knee Operated Wash Basin WB.KO1.300.TMVE

Stoddart Plumbing Knee Operated Wash Basin WB.KO1.300.TMVE

SKU: WB.KO1.300.TMVE
Availability: Please contact us for the availability of this item,
Vendor: Plumbing
$2,123.00 inc GST
$2,123.00 inc GST
$2,123.00 inc GST
Hurry, only 0 item(s) left in stock!

Stoddart Plumbing Knee Operated Wash Basin WB.KO1.300.TV



The Stoddart KO1 Knee Operated Hand Basins are ideal for food premises and other venues requiring hygienic, hands free hand washing.

This unit features a 300mm splashback, eliminating the need for a tiled splashback.

The unit is activated by the user pushing on the front panel, with a timed flow of water from the spout.

When fitted with a tempering valve (select ‘Tempering Valve’ option for quote), this unit complies with AS 4674 - Design, Construction and Fit-Out of Food Premises.



FEATURES & BENEFITS:

  • Hygienic hands free use with knee operated front panel
  • Pressing the front panel activates the timed flow of water from the spout
  • Replacement valves for the timed flow valve are available as a spare part
  • This basin when fitted with a tempering valve, complies with AS4674 for fit out of food premises
  • Water is supplied through an aerated, high rise spout for easy access and minimal splash
  • Spout is WELS rated spout for controlled flow to 7.5 litres per minute
  • Easy-mount single piece stainless steel wall bracket has multiple fixing holes for quick installation by plumber
  • Optional 300mm splashback is available, eliminating the need for a tiled splashback



TECHNICAL DATA

Construction: 304 grade stainless steel construction, wand operated valve and spout are pre-plumbed.
Water Connection:15mm, ½” BSP. For addition of optional TV or TMVE, hot and cold supplies are required. Component claimed temperature control;
• Thermostatic Mixing Valve = +/- 2 deg C
• Tempering Valve = +/-3 deg C
Additional water strainer/filter to protect valves from water-borne dirt and scale is fitted as standard
Waste Connection: 40mm PVC waste supplied (Trap by others)
Unit Fixing: Unit is supplied with wall mounting bracket with 10mm fixing holes. Optional TV or TMVE is supplied as a loose kit part for plumber to install in compliance with regulations. Optional splashback supplied loose, fix to wall with double sided tape and silicon around edges to seal.
Fixing Height: The unit should be mounted at 800 – 830mm above finished floor level for disabled user access.



Brand Stoddart Plumbing Products
Width 500 Millimetres
Depth 420 Millimetres
Height 460 Millimetres
Plumbing Splashback 300mm
Tap Placement Hob Mounted
Mixing Valve Thermostatic Mixing Valve
Operation Knee Operated

Silver Chef Leasing
Rent from $27.57 inc GST per week for 12 months
Select Sliverchef at checkout, pay nothing now.
Up to $65,000 Instant Approval.
Learn More

QTY:

Delivery in 10 business days.

Free Shipping

11111We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Free Returns

Learn More.

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Covid-19 Shipping Delay Notice

As of May 9, 2021, the United States had 32.7 million confirmed cases of COVID-19 (20.7% of confirmed cases worldwide) and 580,000 deaths (17.7% of deaths worldwide). Early on in the pandemic, widespread social, financial, and mental insecurities led to extreme and irrational coping behaviors, such as panic buying. However, despite the consistent spread of COVID-19 transmission, the public began to violate public safety measures as the pandemic got worse

 10 customers are viewing this product
DETAILS

Stoddart Plumbing Knee Operated Wash Basin WB.KO1.300.TV



The Stoddart KO1 Knee Operated Hand Basins are ideal for food premises and other venues requiring hygienic, hands free hand washing.

This unit features a 300mm splashback, eliminating the need for a tiled splashback.

The unit is activated by the user pushing on the front panel, with a timed flow of water from the spout.

When fitted with a tempering valve (select ‘Tempering Valve’ option for quote), this unit complies with AS 4674 - Design, Construction and Fit-Out of Food Premises.



FEATURES & BENEFITS:

  • Hygienic hands free use with knee operated front panel
  • Pressing the front panel activates the timed flow of water from the spout
  • Replacement valves for the timed flow valve are available as a spare part
  • This basin when fitted with a tempering valve, complies with AS4674 for fit out of food premises
  • Water is supplied through an aerated, high rise spout for easy access and minimal splash
  • Spout is WELS rated spout for controlled flow to 7.5 litres per minute
  • Easy-mount single piece stainless steel wall bracket has multiple fixing holes for quick installation by plumber
  • Optional 300mm splashback is available, eliminating the need for a tiled splashback



TECHNICAL DATA

Construction: 304 grade stainless steel construction, wand operated valve and spout are pre-plumbed.
Water Connection:15mm, ½” BSP. For addition of optional TV or TMVE, hot and cold supplies are required. Component claimed temperature control;
• Thermostatic Mixing Valve = +/- 2 deg C
• Tempering Valve = +/-3 deg C
Additional water strainer/filter to protect valves from water-borne dirt and scale is fitted as standard
Waste Connection: 40mm PVC waste supplied (Trap by others)
Unit Fixing: Unit is supplied with wall mounting bracket with 10mm fixing holes. Optional TV or TMVE is supplied as a loose kit part for plumber to install in compliance with regulations. Optional splashback supplied loose, fix to wall with double sided tape and silicon around edges to seal.
Fixing Height: The unit should be mounted at 800 – 830mm above finished floor level for disabled user access.



Brand Stoddart Plumbing Products
Width 500 Millimetres
Depth 420 Millimetres
Height 460 Millimetres
Plumbing Splashback 300mm
Tap Placement Hob Mounted
Mixing Valve Thermostatic Mixing Valve
Operation Knee Operated
