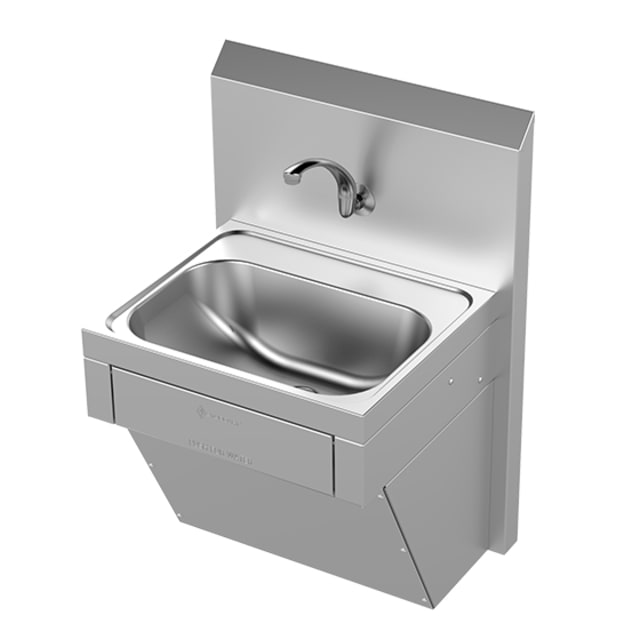

Stoddart Plumbing Knee Operated Wash Basin with Tempering Valve WB.KO3.TV
- Regular price
- $2,343.00 inc GST
- Regular price
-
$2,343.00 inc GST - Sale price
- $2,343.00 inc GST
- Unit price
- per
Stoddart Plumbing Knee Operated Wash Basin with Tempering Valve WB.KO3.TV
Stoddart designed and introduced the Knee Operated Wash Basin with the full front knee operated panel to provide easy access to hygienic hand washing.
This commercial kitchen unit comes with an integrated stainless steel splashback with bevelled top to comply with the health and plumbing requirements.
Integrated splashback allows for wall mount without need to run pipe in wall.
The most popular option for kitchens has a tempering valve pre-fitted to provide comfort and improved cleaning.
With the optional tempering valve, this basin meets AS 4674 for the design, construction and fit out of food premises.
FEATURES & BENEFITS:
- Meets the requirements for hand washing in food premises as detailed in AS4674:2004 (4.4)
- Hygienic hands free use with knee operated front panel
- Timed flow valve provides effective hand washing and saves water
- Includes hygienic, aerated, WELS rated high rise spout for easy access and minimal splash
- Integrated splashback, spout and shroud enclose plumbing for maximum hygiene
- Optional tempering valve and thermostatic mixing valve can be supplied, loose
- Easy mount stainless steel bracket has multiple fixing holes for quick installation by plumber
- Complies with AS 1428.1-2001 for disabled access
TECHNICAL DATA
| Construction: 304 grade stainless steel construction, wand operated valve and spout are pre-plumbed. |
| Water Connection:15mm, ½” BSP. For addition of optional TV or TMVE, hot and cold supplies are required. Component claimed temperature control; |
| • Thermostatic Mixing Valve = +/- 2 deg C |
| • Tempering Valve = +/-3 deg C |
| Additional water strainer/filter to protect valves from water-borne dirt and scale is fitted as standard |
| Waste Connection: 40mm PVC waste supplied (Trap by others) |
| Unit Fixing: Unit is supplied with wall mounting bracket with 10mm fixing holes. Optional TV or TMVE is supplied as a loose kit part for plumber to install in compliance with regulations. Optional splashback supplied loose, fix to wall with double sided tape and silicon around edges to seal. |
| Fixing Height: The unit should be mounted at 800 – 830mm above finished floor level for disabled user access. |
| Brand | Stoddart Plumbing Products |
| Width | 560 Millimetres |
| Depth | 470 Millimetres |
| Height | 800 Millimetres |
| Plumbing Splashback | 300mm |
| Tap Placement | Splashback Mounted |
| Mixing Valve | Tempering Valve |
| Operation | Knee Operated |
