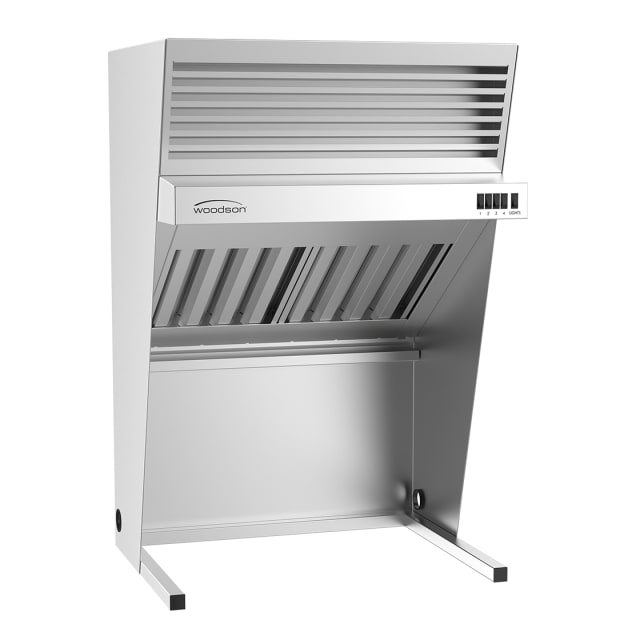

Woodson 1000mm wide Countertop Ductless Exhaust Hood W.CHD1000
- Regular price
- $6,270.00 inc GST
- Regular price
-
$6,270.00 inc GST - Sale price
- $6,270.00 inc GST
- Unit price
- per
Woodson 1000mm wide Countertop Ductless Exhaust Hood W.CHD1000
FEATURES & BENEFITS:
- Improves cooking environments where ducted local exhaust systems are not required by the National Construction Code (NCC)
- Reduces greasy deposits forming on benches, floors, walls and ceilings from cooking activities
- Improves the air quality for kitchen staff by capturing the cooking emissions and filtering the air for recirculation within the workspace
- Air is drawn up through multistage filters and then returned to the kitchen through the front facing louvres above
- LED lighting and multi-speed fan
| APPLICATION |
| • From revision E onwards, all Woodson countertop filtration systems (W.CHD750 and W.CHD1000) are certified to meet the performance requirements of NCC-2022 through deemed to satisfy and performance solution provisions |
| • Tested and certified for Australia & New Zealand |
| • Certified as a recirculating performance solution without connection to ductwork and with a reduced cooking surface to filter separation |
| • Certified for use with electrical cooking equipment including fryers |
| • Certified for a total equipment power rating of up to 10kW |
| • The unit MUST NOT be used with gas or solid-fuel fi red equipment |
| • The multi-stage filtration reduces contaminants effectively to comply with the indoor air quality limits as per NCC-2022: F6V1 in an environment with adequate background ventilation |
| • Smoke emissions are reduced by the multi-stage filters2 |
| • Adequate mechanical or natural ventilation must be provided to remove the heat and humidity from the room as per NCC-2022: F6P4 & F6D6 |
| • Check with local authorities for any regulations in addition to the ventilation requirements of the NCC* |
TECHNICAL DATA
| Model | W.CHD1000 |
| W x D x H (mm) | 1000 x 660 x 1150 |
| Max. Equipment Cooking | 934 x 600 |
| Surface W x D (mm) | (600 from the back edge of the unit) |
| Max. Equipment Height (mm) | 414 |
| Airflow (l/s) | 220 - 300 |
| Sound Pressure (dB(A))* | 66 |
| Total Connected Load | 1.0kW |
| Electrical Connection | 240VAC / 50Hz |
| (10A plug & lead) |
| *A-weighted sound pressure level at 0.5m distance from the air discharge grille at 125 l/s (W.CHD750) and at 220 l/s (W.CHD1000). |
| 1 The NCC-2022 requires an environment with sufficient outdoor air supply provision (F6P3), mechanical ventilation to control odours and contaminants (F6P4) and adequate disposal of contaminated air (F6P5) |
| 2 Reduction of visible smoke > 80% (E2) via the multi-stage filtration |
Free Shipping
Free Returns
Learn More.
Covid-19 Shipping Delay Notice
Woodson 1000mm wide Countertop Ductless Exhaust Hood W.CHD1000
FEATURES & BENEFITS:
- Improves cooking environments where ducted local exhaust systems are not required by the National Construction Code (NCC)
- Reduces greasy deposits forming on benches, floors, walls and ceilings from cooking activities
- Improves the air quality for kitchen staff by capturing the cooking emissions and filtering the air for recirculation within the workspace
- Air is drawn up through multistage filters and then returned to the kitchen through the front facing louvres above
- LED lighting and multi-speed fan
| APPLICATION |
| • From revision E onwards, all Woodson countertop filtration systems (W.CHD750 and W.CHD1000) are certified to meet the performance requirements of NCC-2022 through deemed to satisfy and performance solution provisions |
| • Tested and certified for Australia & New Zealand |
| • Certified as a recirculating performance solution without connection to ductwork and with a reduced cooking surface to filter separation |
| • Certified for use with electrical cooking equipment including fryers |
| • Certified for a total equipment power rating of up to 10kW |
| • The unit MUST NOT be used with gas or solid-fuel fi red equipment |
| • The multi-stage filtration reduces contaminants effectively to comply with the indoor air quality limits as per NCC-2022: F6V1 in an environment with adequate background ventilation |
| • Smoke emissions are reduced by the multi-stage filters2 |
| • Adequate mechanical or natural ventilation must be provided to remove the heat and humidity from the room as per NCC-2022: F6P4 & F6D6 |
| • Check with local authorities for any regulations in addition to the ventilation requirements of the NCC* |
TECHNICAL DATA
| Model | W.CHD1000 |
| W x D x H (mm) | 1000 x 660 x 1150 |
| Max. Equipment Cooking | 934 x 600 |
| Surface W x D (mm) | (600 from the back edge of the unit) |
| Max. Equipment Height (mm) | 414 |
| Airflow (l/s) | 220 - 300 |
| Sound Pressure (dB(A))* | 66 |
| Total Connected Load | 1.0kW |
| Electrical Connection | 240VAC / 50Hz |
| (10A plug & lead) |
| *A-weighted sound pressure level at 0.5m distance from the air discharge grille at 125 l/s (W.CHD750) and at 220 l/s (W.CHD1000). |
| 1 The NCC-2022 requires an environment with sufficient outdoor air supply provision (F6P3), mechanical ventilation to control odours and contaminants (F6P4) and adequate disposal of contaminated air (F6P5) |
| 2 Reduction of visible smoke > 80% (E2) via the multi-stage filtration |
Width: 1000
Height: 1150
Depth: 660
Weight: 90
