Woodson 750mm wide Countertop Ductless Exhaust Hood W.CHD750
- Regular price
- $5,170.00 inc GST
- Regular price
-
$5,170.00 inc GST - Sale price
- $5,170.00 inc GST
- Unit price
- per

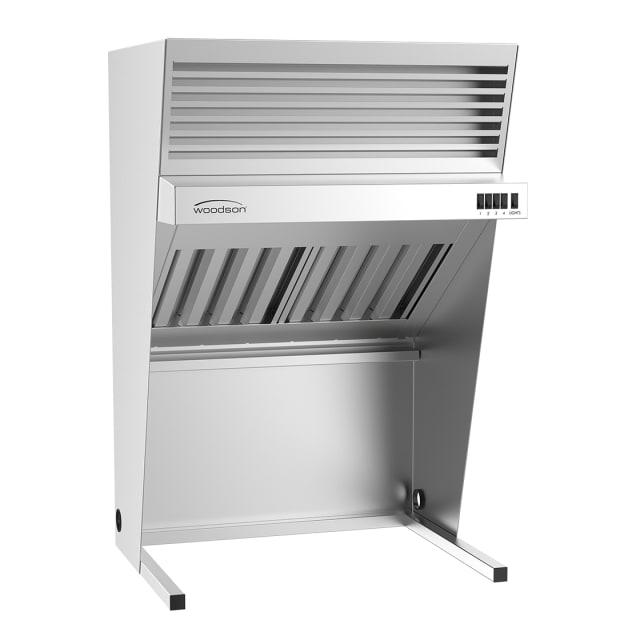

Woodson 750mm wide Countertop Ductless Exhaust Hood W.CHD750
FEATURES & BENEFITS:
- Improves cooking environments where ducted local exhaust systems are not required by the National Construction Code (NCC)
- Reduces greasy deposits forming on benches, floors, walls and ceilings from cooking activities
- Improves the air quality for kitchen staff by capturing the cooking emissions and filtering the air for recirculation within the workspace
- Air is drawn up through multistage filters and then returned to the kitchen through the front facing louvres above
- LED lighting and multi-speed fan
- Improves cooking environments where ducted local exhaust systems are not required by the National Construction Code (NCC)
- Reduces greasy deposits forming on benches, floors, walls and ceilings from cooking activities
- Improves the air quality for kitchen staff by capturing the cooking emissions and filtering the air for recirculation within the workspace
- Air is drawn up through multistage filters and then returned to the kitchen through the front facing louvres above
- LED lighting and multi-speed fan
| APPLICATION |
| From revision E onwards, all Woodson countertop filtration systems (W.CHD750 and W.CHD1000) are certified to meet the performance requirements1 of NCC-2022 through deemed to satisfy and performance solution provisions |
| Tested and certified for Australia & New Zealand |
| certified as a recirculating performance solution without connection to ductwork and with a reduced cooking surface to filter separation |
| certified for use with electrical cooking equipment including fryers |
| certified for a total equipment power rating of up to 10kW |
| The unit MUST NOT be used with gas or solid-fuel fi red equipment |
| The multi-stage filtration reduces contaminants effectively to comply with the indoor air quality limits as per NCC-2022: F6V1 in an environment with adequate background ventilation |
| Smoke emissions are reduced by the multi-stage filters2 |
| Adequate mechanical or natural ventilation must be provided to remove the heat and humidity from the room as per NCC-2022: F6P4 & F6D6 |
| Check with local authorities for any regulations in addition to the ventilation requirements of the NCC* |
TECHNICAL DATA
| Model | W.CHD750 |
| W x D x H (mm) | 750 x 660 x 1150 |
| Max. Equipment Cooking | 684 x 600 |
| Surface W x D (mm) | (600 from the back edge of the unit) |
| Max. Equipment Height (mm) | 414 |
| Airflow (l/s) | 125 - 215 |
| Sound Pressure (dB(A))* | 60 |
| Total Connected Load | 0.5kW |
| Electrical Connection | 240VAC / 50Hz |
| (10A plug & lead) |
| *A-weighted sound pressure level at 0.5m distance from the air discharge grille at 125 l/s (W.CHD750) and at 220 l/s (W.CHD1000). |
| 1 The NCC-2022 requires an environment with sufficient outdoor air supply provision (F6P3), mechanical ventilation to control odours and contaminants (F6P4) and adequate disposal of contaminated air (F6P5) |
| 2 Reduction of visible smoke > 80% (E2) via the multi-stage filtration |
Free Shipping
Free Returns
Learn More.
Covid-19 Shipping Delay Notice
Woodson 750mm wide Countertop Ductless Exhaust Hood W.CHD750
FEATURES & BENEFITS:
- Improves cooking environments where ducted local exhaust systems are not required by the National Construction Code (NCC)
- Reduces greasy deposits forming on benches, floors, walls and ceilings from cooking activities
- Improves the air quality for kitchen staff by capturing the cooking emissions and filtering the air for recirculation within the workspace
- Air is drawn up through multistage filters and then returned to the kitchen through the front facing louvres above
- LED lighting and multi-speed fan
- Improves cooking environments where ducted local exhaust systems are not required by the National Construction Code (NCC)
- Reduces greasy deposits forming on benches, floors, walls and ceilings from cooking activities
- Improves the air quality for kitchen staff by capturing the cooking emissions and filtering the air for recirculation within the workspace
- Air is drawn up through multistage filters and then returned to the kitchen through the front facing louvres above
- LED lighting and multi-speed fan
| APPLICATION |
| From revision E onwards, all Woodson countertop filtration systems (W.CHD750 and W.CHD1000) are certified to meet the performance requirements1 of NCC-2022 through deemed to satisfy and performance solution provisions |
| Tested and certified for Australia & New Zealand |
| certified as a recirculating performance solution without connection to ductwork and with a reduced cooking surface to filter separation |
| certified for use with electrical cooking equipment including fryers |
| certified for a total equipment power rating of up to 10kW |
| The unit MUST NOT be used with gas or solid-fuel fi red equipment |
| The multi-stage filtration reduces contaminants effectively to comply with the indoor air quality limits as per NCC-2022: F6V1 in an environment with adequate background ventilation |
| Smoke emissions are reduced by the multi-stage filters2 |
| Adequate mechanical or natural ventilation must be provided to remove the heat and humidity from the room as per NCC-2022: F6P4 & F6D6 |
| Check with local authorities for any regulations in addition to the ventilation requirements of the NCC* |
TECHNICAL DATA
| Model | W.CHD750 |
| W x D x H (mm) | 750 x 660 x 1150 |
| Max. Equipment Cooking | 684 x 600 |
| Surface W x D (mm) | (600 from the back edge of the unit) |
| Max. Equipment Height (mm) | 414 |
| Airflow (l/s) | 125 - 215 |
| Sound Pressure (dB(A))* | 60 |
| Total Connected Load | 0.5kW |
| Electrical Connection | 240VAC / 50Hz |
| (10A plug & lead) |
| *A-weighted sound pressure level at 0.5m distance from the air discharge grille at 125 l/s (W.CHD750) and at 220 l/s (W.CHD1000). |
| 1 The NCC-2022 requires an environment with sufficient outdoor air supply provision (F6P3), mechanical ventilation to control odours and contaminants (F6P4) and adequate disposal of contaminated air (F6P5) |
| 2 Reduction of visible smoke > 80% (E2) via the multi-stage filtration |
Width: 750
Height: 1150
Depth: 660
Weight: 69
